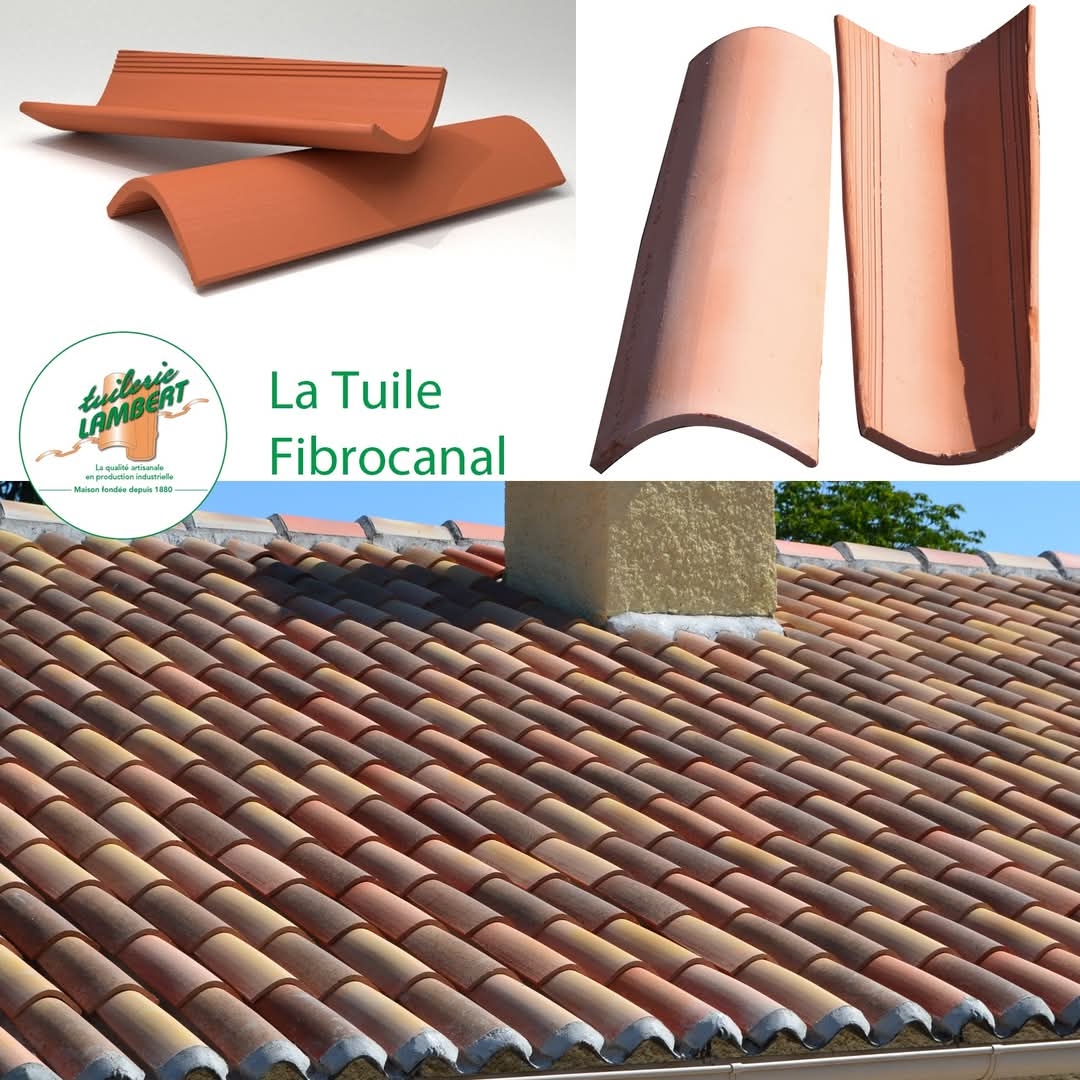

Fibrocanal

The tiles are designed to Fibrocanal dressing corrugated roofing sheets.

The contour is smaller than that of the ordinary tile. They are especially suited to small waves (17.7 cm) fiber cement plates.

The curve of the fiber channel tile perfectly matches the wave of the fiber cement sheet to provide a traditional finish (you can see this in the slideshow photos).

This fiber channel is installed ONLY on the top of the wave and not in the runoff channel. (See diagram.)

Fibrocanal 0.40m

Length : 400 mm
Width big end : 157 mm
Width small end : 123 mm
Unit weight : 1,685 kg
Pallet weight : 1,163 t.
Quantity per pallet : 690
Surchage per m² ² : 29kg
Number per m² : 18,5
Couverage : 80mm

Fibrocanal 0.48m

Length : 480 mm
Width big end : 155 mm
Width small end : 120 mm
Unit weight : 1,84 kg
Pallet weight : 1,233 t.
Quantity per pallet : 670
Surchage per m² : 27 kg
Number per m² : 15
Couverage : 80mm

The tiles must be fixed by flexible gluing obtained by means of mastic pads, the list of which is mentioned in the Application Technique Document specific to the support plates for Roman tiles.

Indicative value (+ or - 2mm)

The weight of our products varies.

For any specific color, there is a production constraint of 13,000 tiles minimum with delay.
